Industrial Fixed gas detector Probe K-G60 – Bosean official

Industrial Fixed gas detector Probe K-G60

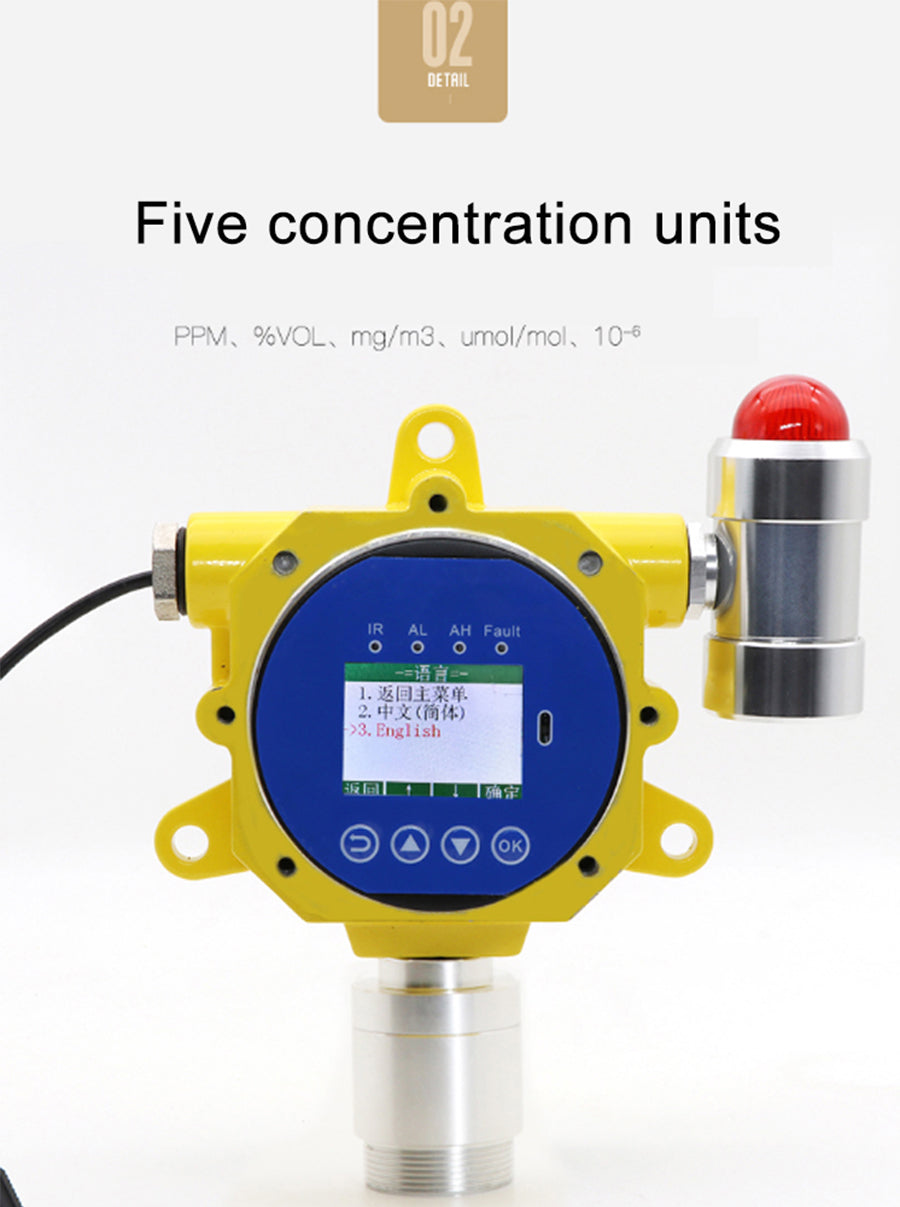

    • Five units can be switched at will, PPM, %VOL, mg/m3, umol/mol, 10^-6

    • Output a variety of signals with a transmission distance of 1km,. Standard 4-20mA signal, 433MHz wireless transparent transmission function is optional, Standard RS485 signal, Dual relay passive signal output.

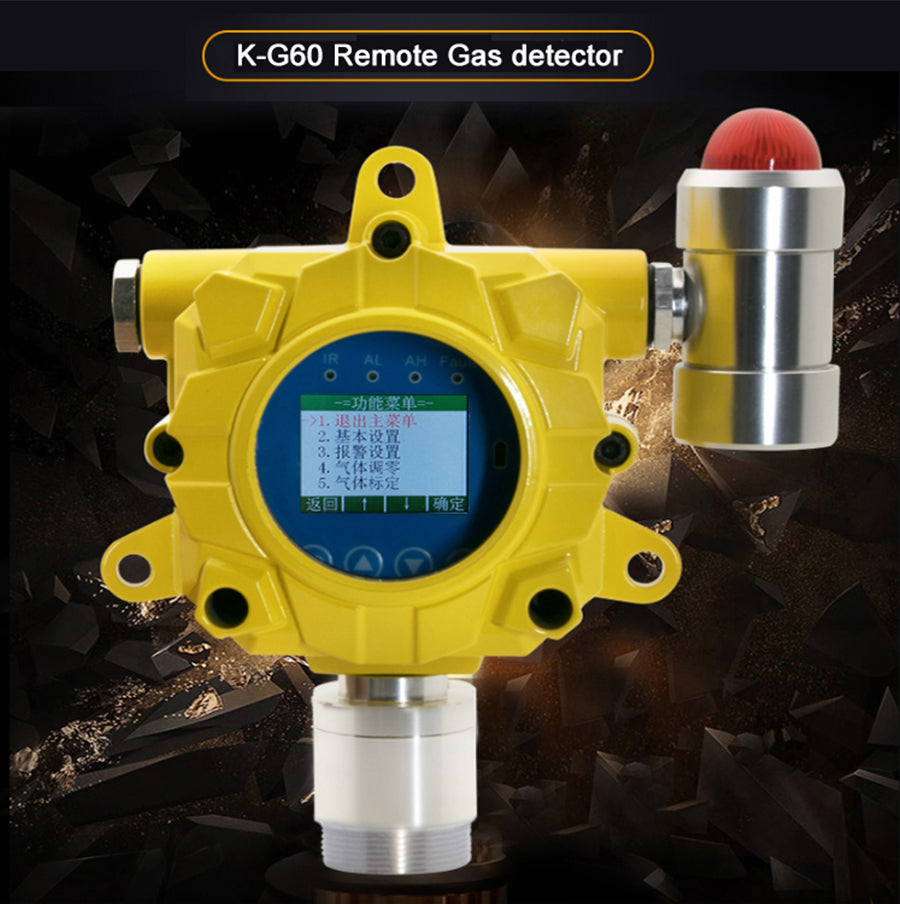

    • Product type:K-G60 fixed gas detector/transmitter

    • Explosion proof grade:Exd ⅡC T6 Gb

    • Response time:≦20S

    • Power supply:DC24V±15%

    • Working temperature:-20℃~50℃

    • Output current:4-20mA

    • Working humidity:0-95%RH

    • Contact output:Free contact output, max power 1kW

    • Single input:4~20mA and RS485

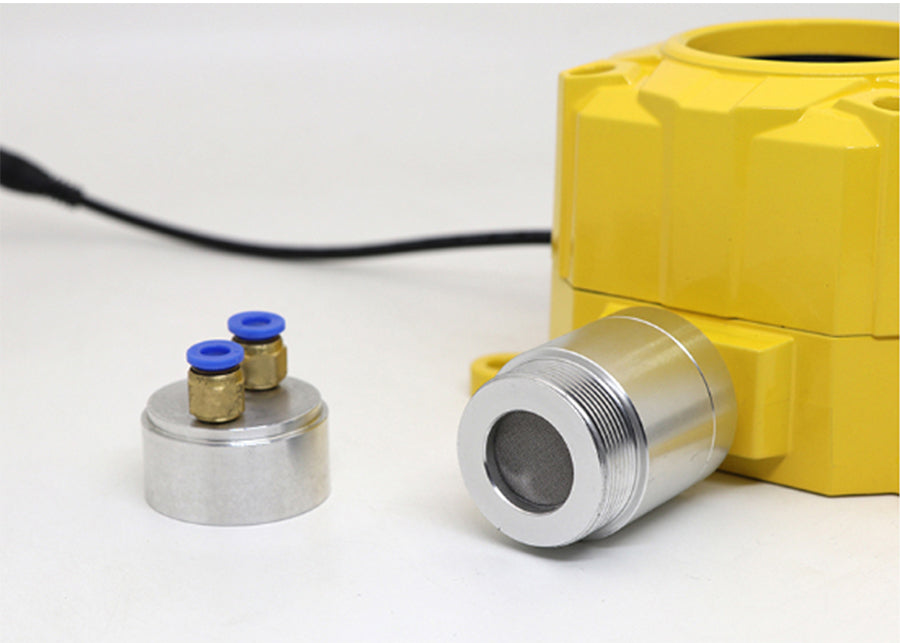

    • Installation method:Wall mounted, pipe mounted, flow-through, pump suction

    • Shell material:Aluminum

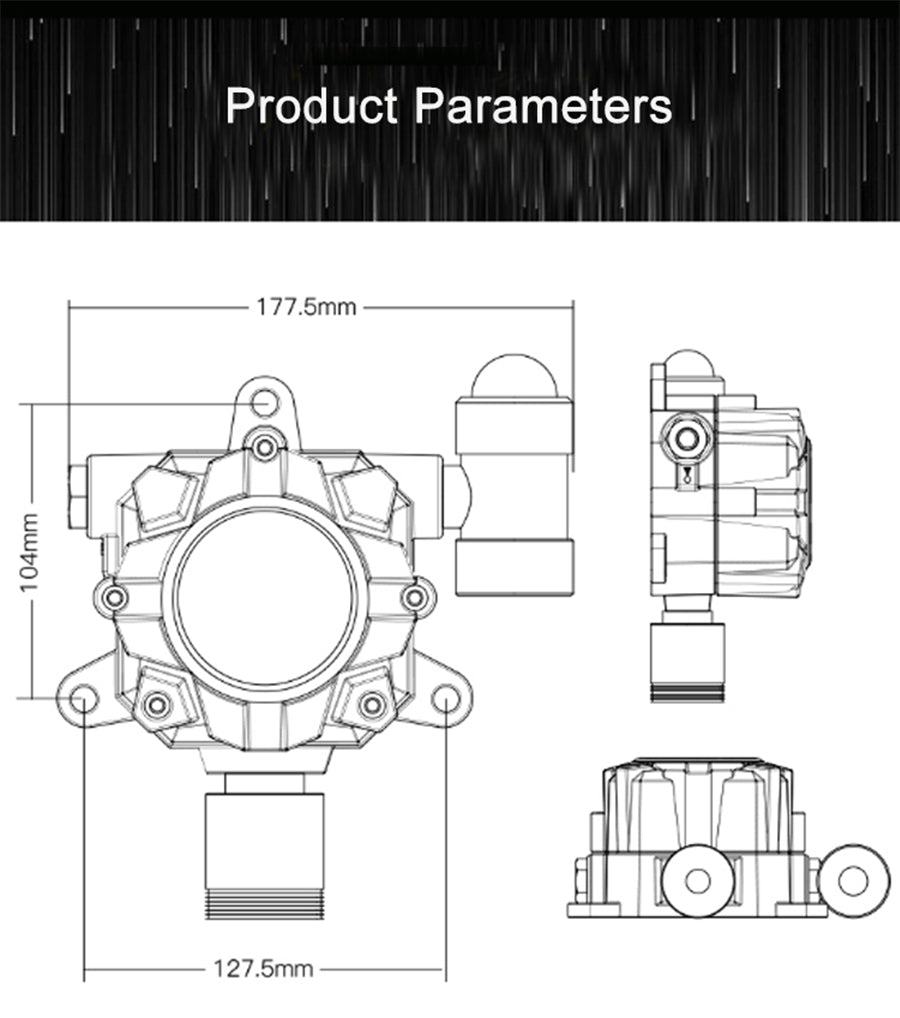

    • Dimensions:177.5x127.5x104mm(L×W×H)
